Victrix

ORB Small Bore

THE CORONATION, IN .22 LR.

Orb Small Bore, the youngest member of our Victrix Armaments ELR
.22 LR royal family is finally available.
Everything is ready for the coronation,
let the ceremony begin.

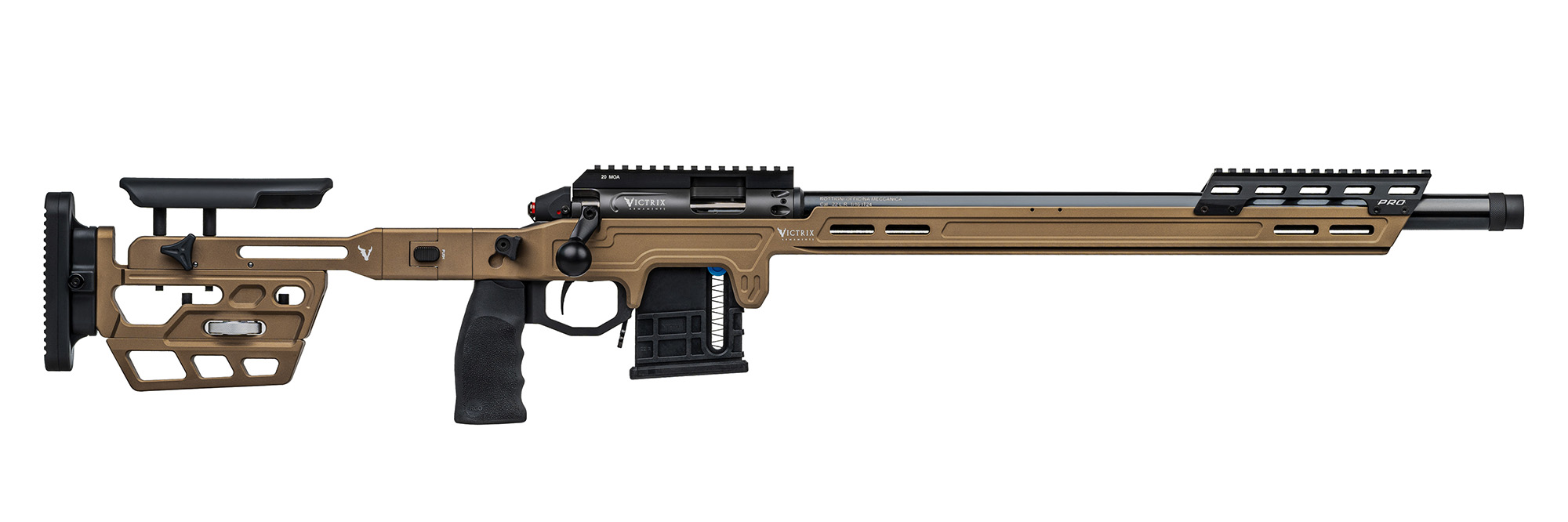

Orb Small Bore
Standard configuration with 27'' barrel
Burnt Bronze

DATA
SHEET

Destination use
.22 L.R. shooting

Caliber / Twist rate
.22 L.R. (1/16)

Barrel length
22”

Weight
6.65 kg (14.66 lb), with an empty magazine, a muzzle thread protector and no scope

Dimension
Closed overall length: 804 mm (31.65”)
Open overall length: 1063 mm (41.85”)
With muzzle thread protector and barrel length 22”

Base rifle
Special steel rifled barrel with a bull barrel contour
Buttstock with a horizontal and vertical adjustment, and an insulated cheek piece
Rear slider inclined at 3 degrees, vertically adjustable by ring
Single feed and single stack 10-round polymer magazine
Reversible EVO button folding system
High strength monobloc chassis in light alloy ready to mount accessories or hold ammunition, and an ergonomic thumb rest
Light profile forend in light alloy equipped with an integrated Anschutz-type rail in the middle and an integrated Arca rail that run the entire length and a side system to mount accessories
Handguard cover on the front with Picatinny rail L=172,5 mm (6.79”)
Wider trigger guard
Ergonomic and interchangeable zero angle flat top grip for standard AR platform
Muzzle thread protector
Action in AISI 630 worked out from billet with a 20 MoA removable rail in light alloy
Bolt with two asymmetric rear lugs arranged at an angle of 60-degree lift, with a quick disassembly system, a double extractor and an ergonomic interchangeable bolt lever
PVD finish on the action and on the bolt
Victrix Sporting Plus adjustable single stage trigger with a two-position safety: standard setting approx. 250 gr (8.82 oz)
Heavy-duty reinforced transport case
User manual and welcome kit

Stock colour
CERAKOTE ceramic polymer firearm coating available in:
Burnt Bronze

Optional
45 MoA action rail in light alloy
Handguard cover on the front with Picatinny rail L=296 mm (11.65”)



Rome Accessories

Choose the best accessories for your rifle.
Rome Accessories and Victrix Armaments, together to an only target.

SHOP

AN IMPORTANT ALLY.

Orb Small Bore will be your most trusted ally during your training.
Test each shot, one after the other,
without the fear of having to control the cost of your ammunition.

WITH YOUR HEAD HELD HIGH.

To compete with the big guys
you don't need to be giants.
With Orb Small Bore every long distance shot
will be up to the competition.
